专业图像处理，最大支持16M像素
输入：8 lane - MIPI/sub-LVDS，支持4 sensor输入
多sensor拼接：支持最大4路4M像素视频流拼接
编解码：H.265/H.264 4K@60fps
Quad A55 1.3GHz
32KB I Cache/D Cache
128KB L2 Cache
Dual core vision DSP
4TOPS INT8
intelligent analysis such as motion detection,
video diagnosis
4 x Sensor In 8lane MIPl/sub-LVDS
4lane MIPI-DSI/BT656/1120/CVBS
1x HDMI2.0
16M pixels
3-frame WDR,local tone mapping
H.265/H.264 4K@60fps+720P@30fps
JPEG 4K@60fps
32bit DDR4 3200Mbps
LPDDR4/LPDDR4X 3733Mbps
H.265/H.264 4K@60fps+720P@30fps
JPEG 4K@60fps
SPI Nor/Nand Flash
eMMC5.1
up to 4×2688×1520@30fps
2 x RGMII MAC,100M/1000M
2 x PCle3.0
1x USB3.0 +1x USB2.0
I2C/UART/SPI/LSADC/I2S/PWM
Internal ADC&DAC

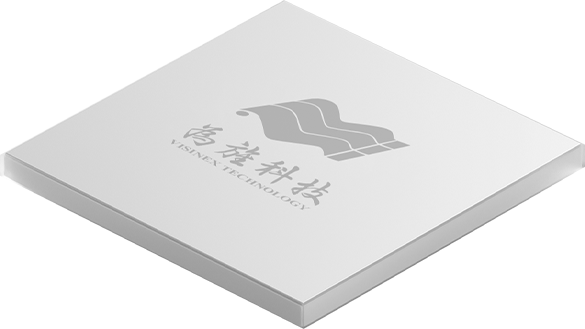

FCCSP 16*16mm
